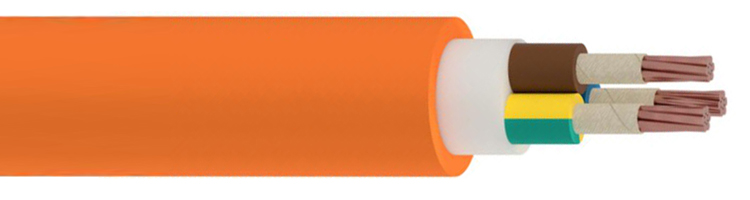

N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free

  • 1
  • 2

Transport Package : Wooden Steel Drum

Voltage : 0.6/1KV

Model Number : N2XH FE 180

Delivery Time : 5-8 Days

Application : Industrial

Place of Origin : Hebei, China

Payment Terms : L/C,T/T

Insulation : XLPE

Jacket : LSZH

Certification : ISO,CE,IEC,TUV,KEMA

Trademark : Minfeng Cable Group

Price : 0.1-5

Packaging Details : Wooden Drum

Brand Name : Minfeng

MOQ : 100m

Supply Ability : 100KM/Week

Contact Now

N2XH FE 180 0.6/1KV Multi Core Mica Tape XLPE Insulation Low Smoke Halogen Free Fire Resistant Cables
N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free
N2XH FE 180 / IEC 60331 Fire-resistant, multi-core, single or multi-wire copper conductor power cables, halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire.
Product Specifications
Rated Voltage 0.6/1kV
Size Range 1.5-240mm²
Conductor Material Copper
Insulation Material XLPE + Mica Tape
Working Temperature 90°C
Jacket Material LSZH (Low Smoke Zero Halogen)
Application Industrial
Standard IEC 60331-21
Model Number N2XH FE 180
Applications
Used in energy networks, refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, and business centers where there is a risk of fire.
Technical Characteristics
  • Rated Voltage Uo/U (Um): 0.6/1 kV
  • Operating temperature range: -20°C to +60°C
  • Short-circuit max. conductor temperature: 250°C
  • Flame retardant: IEC 60332-3 Cat. C
  • Smoke density: IEC 61034
  • Gases corrosivity: IEC 60754-2
  • Fire resistant: IEC 60331-21
  • Max. conductor temperature in service: 90°C
  • Maintains circuit integrity for 180 minutes during fire (FE 180)
Key Features
Ideal for general power supply and distribution in indoor applications. These cables provide enhanced fire safety with low smoke density, non-flame propagating properties, and no corrosive gas emissions to protect life and property in case of fire.
