300/500V Type FTV PTFE Insulation Glass-fiber Tape Braid High Temperature Cable for Industrial Use

  • 1
  • 2

Rated Voltage : 300/500V

Standard Compliance : CEI EN 60332-1-2

Place of Origin : Hebei, China

Model : Type FTV

MOQ : 100m

Delivery Time : 5-8 Days

Insulation Material : PTFE tape

Corporation : Minfeng group

Payment Terms : L/C,T/T

Certification : ISO,CE,IEC,TUV,KEMA

Price : 0.1-5

Brand Name : Minfeng

Packaging Details : Wooden Drum

Supply Ability : 100KM/Week

Range Of Application : Industrial

Model Number : 300/500V Type FTV Cable

Conductor : annealed red copper

Contact Now

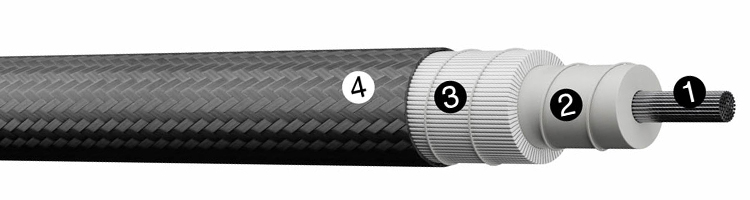

300/500V Type FTV PTFE Insulation Glass-fiber Tape Braid Cable High Temperature Cable
Product Overview

High-temperature cable designed for industrial processes with PTFE insulation and glass-fiber tape braid protection, suitable for fixed installation in industrial equipment.

300/500V Type FTV PTFE Insulation Glass-fiber Tape Braid High Temperature Cable for Industrial Use
Key Specifications
Type Insulated
Rated Voltage 300/500V
Conductor Material Annealed Red Copper
Insulation Material PTFE Tape
Working Temperature -60°C to +300°C
Conductor Type Other
Application Industrial, Building
Shape Round
Model Number Type FTV
Standard CEI EN 60332-1-2
Application & Installation
APPLICATION: Used in machines for industrial processes at high temperatures.
INSTALLATION: For fixed installation in industrial equipment.
Technical Features by Temperature Rating
FEATURES FTV 150℃ FTV 350℃ FTV 600℃
Conductor Annealed red copper Nickel-plated copper (13 micron) Nickel-plated copper (13 micron)
Insulation PTFE tape
Flame protection Glass-fiber tape
Braid Glass-fiber impregnated with silicone rubber
Braid colour White/Black White/Blue White/Green
Flame retardant CEI EN 60332-1-2
Rated voltage Uo/U 300/500V
Testing voltage 2000V
Working temperature (-60 ÷ +300)℃
Max conductor temperature 150℃ 350℃ 600℃
Bending radius Diameter x 10
Physical Specifications
N x mm² MEDIUM OUTER DIA (mm) MEDIUM WEIGHT (kg/km)
FTV 1x1.5 3.0 26.0
FTV 1x2.5 3.5 38.5
FTV 1x4 4.7 55.0
FTV 1x6 5.3 77.3
FTV 1x10 7.0 136.0
FTV 1x16 8.5 198.6
